Material, Surface Treatment and Other Information
Stud Direction Options
I - Stud inside
O - Stud outside
Surface Treatment Options
A - White Zinc Plated (Zn/White)
B - Black Zinc Plated (Zn/Black)
C - Yellow Zinc Plated (Zn/Yellow)
D - Blue Zinc Plated (Zn/Blue)
E - Green Zinc Plated (Zn/Green)
F - Matte Nickel Plated
G - Shiny Nickel Plated
H - Chrome Plated
I - Phosphate Plated
K - Polished
L - Electropolished
Z - No plating, raw material
Material Options
A - Bracket: Steel Sheet
Stud: Free Cutting Steel DIN 1.0718 (11SMnPb30+C)
C - Stainless Steel 1.4305 / AISI 303
D - Stainless Steel 1.4301 / AISI 304
E - Stainless Steel 1.4401 / AISI 316

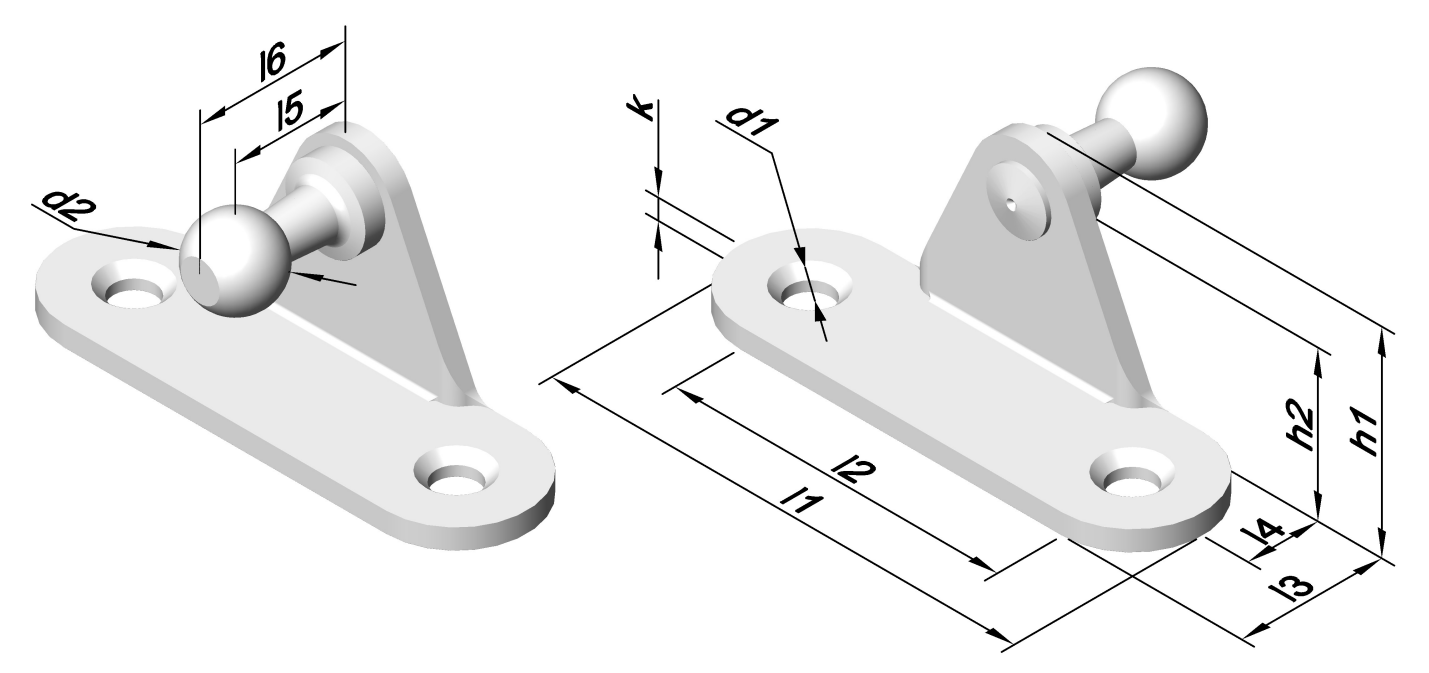

"L" Bracket
| Code |
Option "I" |
Option "O" |
l1 |
l2 |
l3 |
l4 |
d1 |
h1 |
h2 |
k |
d2 |
l5 |
l6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BR600101 |
|
|
46,2 |
32,2 |
14 |
7 |
4,1 |
20 |
15 |
2 |
8 |
11 |
14,5 |
| BR600102 |
|
|
46,2 |
32,2 |
14 |
7 |
4,1 |
20 |
15 |
2 |
10 |
11 |
15,5 |
| BR600103 |
|
|
46,2 |
32,2 |
14 |
7 |
4,1 |
20 |
15 |
2 |
10 |
12,5 |
17 |
| Code |
Option "I" |
Option "O" |
l1 |
l2 |
l3 |
l4 |
d1 |
h1 |
h2 |
k1 |
d2 |
d3 |
k2 |
l5 |
l6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BR600106 |
|
|
46,2 |
32,2 |
14 |
7 |
4,1 |
20 |
15 |
2 |
6 |
8 |
2 |
8 |
11 |
| BR600107 |
|
|
46,2 |
32,2 |
14 |
7 |
4,1 |
20 |
15 |
2 |
8 |
10 |
2 |
12 |
15,5 |
