Material, Surface Treatment and Other Information
Other
F - Fine Thread
L - Left-Handed Thread
Surface Treatment Options
A - White Zinc Plated (Zn/White)
B - Black Zinc Plated (Zn/Black)
C - Yellow Zinc Plated (Zn/Yellow)
D - Blue Zinc Plated (Zn/Blue)
E - Green Zinc Plated (Zn/Green)
F - Matte Nickel Plated
G - Shiny Nickel Plated
H - Chrome Plated
I - Phosphate Plated
J - Heat Treated
K - Polished
L - Electropolished
M - Anodized
Z - No Plating, Raw Material
Material Options
A - Free Cutting Steel DIN 1.0718 (11SMnPb30+C)/CK 67 (Clips)
B - Carbon Steel, f.ex: C1020, C1035, C1040 etc.
C - Stainless Steel 1.4305 / AISI 303
D - Stainless Steel 1.4301 / AISI 304
E - Stainless Steel 1.4401 / AISI 316
G - Aluminum 6000 Series

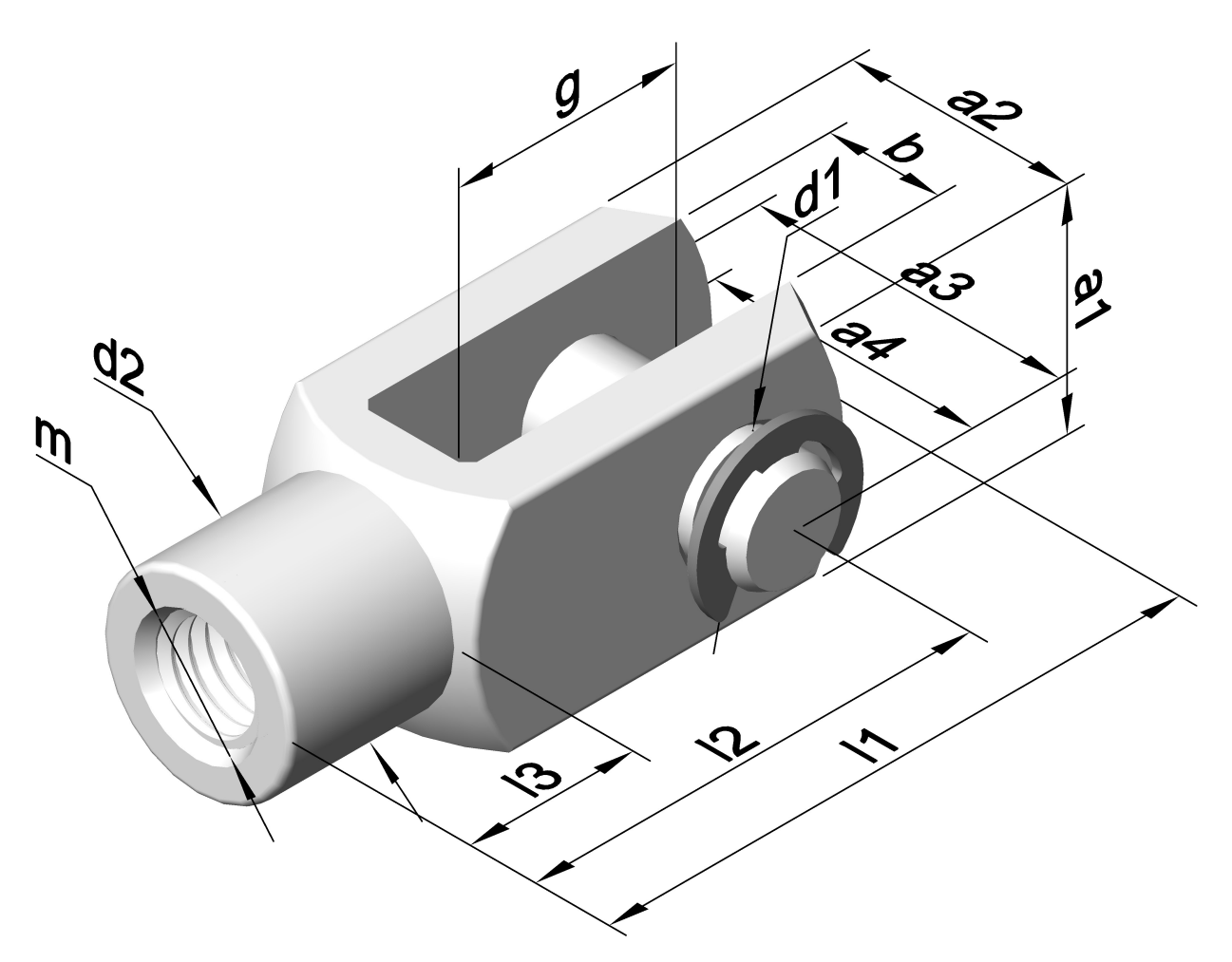

Clevis DIN 71752 with Bolt with Groove (Including Retainer)
| Code |
|
d1 |
g |
a4 |
a1 |
a2 |
a3 |
b |
m |
d2 |
l1 |
l2 |
l3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CC201 |
|
4 |
8 |
10,5 |
8 |
11,5 |
4 |
M4x0,7 |
8 |
21 |
16 |
6 |
|
| CC203 |
|
5 |
10 |
13 |
10 |
14,5 |
5 |
M5x0,8 |
9 |
26 |
20 |
7,5 |
|
| CC204 |
|
5 |
20 |
13 |
10 |
14,5 |
5 |
M5x0,8 |
9 |
36 |
30 |
7,5 |
|
| CC205 |
|
6 |
12 |
15,5 |
12 |
17 |
6 |
M6x1 |
10 |
31 |
24 |
9 |
|
| CC206 |
|
6 |
24 |
15,5 |
12 |
17 |
6 |
M6x1 |
10 |
43 |
36 |
9 |
|
| CC207 |
|
8 |
16 |
20 |
16 |
22 |
8 |
M8x1,25 |
14 |
42 |
32 |
12 |
|
| CC208 |
|
8 |
32 |
20 |
16 |
22 |
8 |
M8x1,25 |
14 |
58 |
48 |
12 |
|
| CC209 |
|
10 |
20 |
25 |
20 |
27 |
10 |
M10x1,5 |
18 |
52 |
40 |
15 |
|
| CC210 |
|
10 |
40 |
25 |
20 |
27 |
10 |
M10x1,5 |
18 |
72 |
60 |
15 |
|
| CC211 |
|
12 |
24 |
30 |
24 |
33 |
12 |
M12x1,75 |
20 |
62 |
48 |
18 |
|
| CC212 |
|
12 |
48 |
30 |
24 |
33 |
12 |
M12x1,75 |
20 |
86 |
72 |
18 |
|
| CC213 |
|
14 |
27 |
33 |
27 |
36 |
14 |
M14x2 |
24 |
72 |
56 |
22,5 |
|
| CC215 |
|
16 |
32 |
38,5 |
32 |
42 |
16 |
M16x2 |
26 |
83 |
64 |
24 |
|
| CC217 |
|
20 |
40 |
46 |
40 |
50 |
20 |
M20x2,5 |
34 |
105 |
80 |
30 |
|
